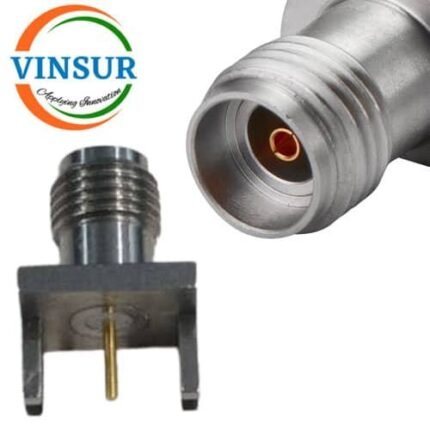

11U21050 — RF CONNECTOR — 50OHMS , 2.92MM FEMALE , STRAIGHT , PCB-EDGE MNT
Applications
- Telecommunications:Â Base stations, antenna arrays for 5G/6G, data centers, and high-speed networks.
- Military & Aerospace:Â Missile guidance, radar systems, electronic warfare, satellite ground stations, and airborne communication.
- Test & Measurement:Â Network analyzers, test fixtures, attenuators, and high-frequency system calibration.
- Industrial Automation & Robotics: High-speed data links in demanding environments.
- Medical:Â High-reliability connections in advanced medical devices.
For Orders & Info
Description
| CONNECTOR SPECIFICATION | |
| Connector name | 2.92mm |
| Gender | Jack(Female) |
| Orientation | Straight |
| Mounting Type | PCB-Edge , End Launch |
| Impedance | 50Ω |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium copper |
| Mating Cycles | 500 |
| Insulator Material | PTFE |
| Body Style | 2 Hole |
| Insertion Loss | 0.35dB |
| VSWR | ≤1.25 |
| Max Frequency | DC to 40GHz |
| Temperature Rating | -55°C to +50°C |
