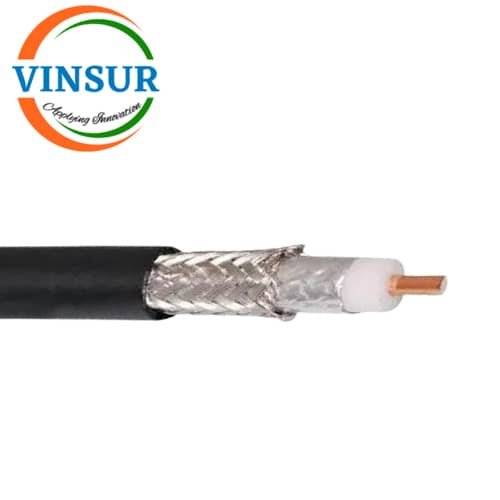

HLF 200 Coaxial Cable
P/N : VSW-HLF200-CC
- HLF 200 Coaxial Cable
- 50Ω
- Max Frequency (GHz) -DC to 5.8GHz
Applications:
- Wireless & Cellular
- Networking
- Radio & Broadcasting
- Industrial & Lab Use
Click Here to get Data Sheet
For Orders & Info
Description
| CABLE CONSTRUCTION | |||
| Description | Material | Size inch | Size mm |
| Center Conductor | Solid Bare Copper | 0.0441 inch | 1.12 mm |
| Dielectric | Foamed Polyethylene | 0.116 inch | 2.95 mm |
| Inner Shield | Sealed APA Tape | 0.123 inch | 3.12 mm |
| Outer Shield | 36AWG, 90% Tinned Copper Braid | 0.144 inch | 3.65 mm |
| Jacket | Black PE | 0.195 inch | 4.95 mm |
| ELECTRICAL SPECIFICATIONS | |
| Operation Frequency | 30 ~ 6000MHz |
| Characteristic Impedance | 50 Ω |
| Velocity of Propagation, Nom. | 82 % |
| Capacitance, Nom. | 24.5 ㎋/kft (80.3 ㎋/㎞) |
| Inner Conductor Resistance @ 20℃ | 5.5 Ω/kft (18 Ω/km) |
| Outer Conductor Resistance @ 20℃ | 4.9 Ω/kft (16 Ω/km) |
