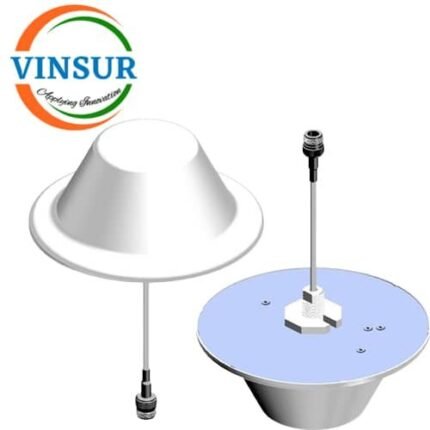

Omni Ceiling Mount Antenna(698–3800MHz)
P/N : VSW-AN-CODA-M01
Applications:
- CDMA/GSM/3G/2.4GHzWLAN/ Bluetooth/LTE/Wi-Fi.
- Indoor Omni directional coverage
- Wireless communication system
- Wireless data transmission
Click here to get Data Sheet
For Orders & Info
Description
| SPECIFICATION | |
| Frequency Range | 698 – 960 MHz
1350-1550 MHz 1690-3800 MHz |
| Gain | 2/3 dBi |
| Input Impedance | 50 Ω |
| VSWR (Max.) | ≤ 1.2 |
| Polarization | Vertical |
| Horizontal Beam Width | 360° |
| Vertical Beam Width | 85° / 54° / 28° |
| Max. Power | 50 W |
| Connector | N Female or Customized |
| Dimension | Ø186 x 90 mm |
| Weight | 250 grams. |
| Mounting | Ceiling Mount |
| Operating Temperature | -30° to 60°C |
| Humidity | 5 – 95% |
| Radom | UV Protected ABS |
