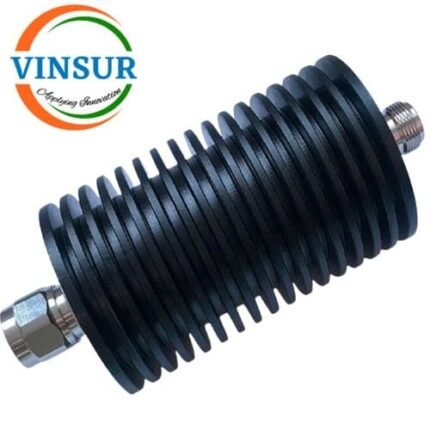

RF Fixed Attenuator(100W 30dB DC-8.5GHz N Male to N Female)
P/N : VSW-ATT100-30-8.5-NFF
- RF Fixed Attenuator
- 50Ω
- N Male to Female
- 100WÂ
- Attenuation(dB) – 30
- Max Frequency (GHz) – DC-8.5
Click Here to get Data Sheet
For Orders & Info
Description
| ELECTRICAL & MECHANICAL SPECIFICATIONS | |
| Attenuation(dB) | 30 |
| Accuracy(dB) | ±1.5 |
| Freq(MHz) | DC-8.5GHz |
| VSWR | ≤1.25 |
| Power Rating(W) | 100W@25℃ (average) |
| Impedance | 50 ohm |
| Connector | N Male to N Female |
| Color | Black |
| Operating Tem(℃) | -55°C to +125°C |
| Dimension(mm) | See Drawing |
