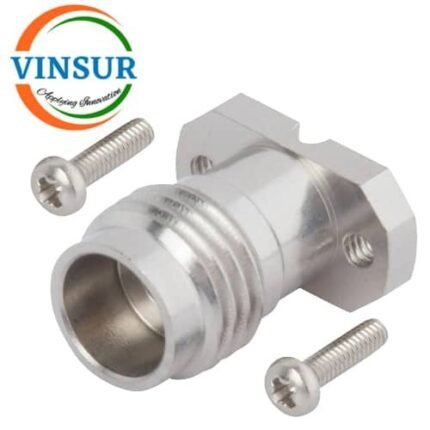

VSW-11T21340 — RF CONNECTOR – 50OHMS , 2.4MM FEMALE , STRAIGHT, 2-HOLE FLANGE SCREW TYPE CONNECTOR
Applications
- Telecommunications:Â Base stations, antenna arrays for 5G/6G, data centers, and high-speed networks.
- Military & Aerospace:Â Missile guidance, radar systems, electronic warfare, satellite ground stations, and airborne communication.
- Test & Measurement:Â Network analyzers, test fixtures, attenuators, and high-frequency system calibration.
- Industrial Automation & Robotics: High-speed data links in demanding environments.
- Medical:Â High-reliability connections in advanced medical devices.
For Orders & Info
Description
| CONNECTOR SPECIFICATION | |
| Connector name | 2.4mm |
| Gender | Jack(Female) |
| Orientation | Straight |
| Mounting Type | PCB Vertical Launch |
| Impedance | 50Ω |
| Body Finish | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium copper |
| Coupling | Threaded |
| Insulator Material | PTFE |
| Body Style | 2 Hole |
| VSWR | ≤1.2 |
| Number of Ports | Single |
| Max Frequency | DC to 50GHz |
| Temperature Rating | -65°C to +165°C |
