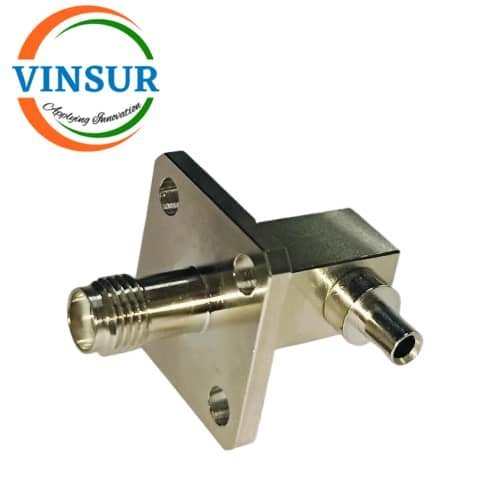

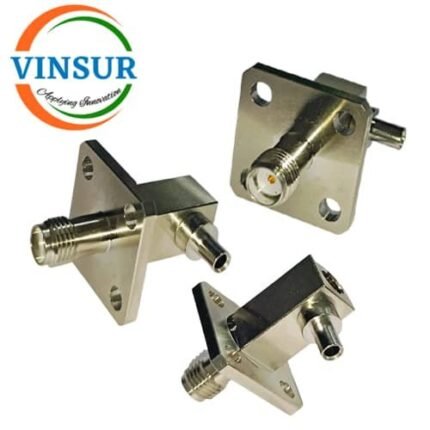

VSW250011-CN — RF CONNECTOR – 50 OHMS , SMA FEMALE ,RIGHT ANGLE 4 HOLE FLANGE , SOLDER TYPE , RG405 (0.086 INCH)CABLE
Applications
- Base Stations
- Antennas
- Telecommunications
- Instrumentation
- PC/LAN
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Right Angle |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| VSWR | ≤1.30 Max |
| Insulator Material | PTFE |
| Cable Type | RG405(0.86) |
| Max Frequency (GHz) | DC to 6GHz |
| Polarity | Standard |
| Mounting Features | 4-hole flange |
| Contact Termination | Solder |
| Temp (Max Degrees Celsius) | 165° |
| Temp (Min Degrees Celsius) | -65° |
