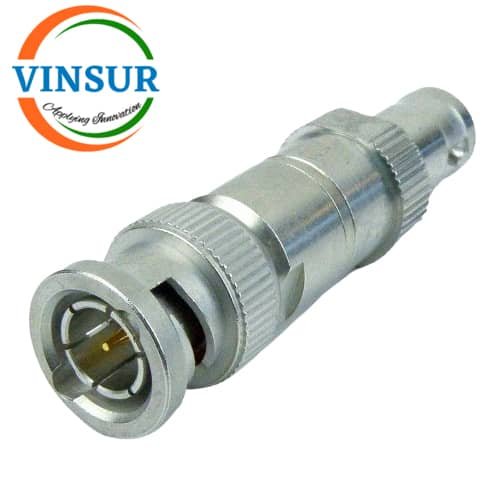

Matching Pad(BNC Male to BNC Female)
P/N : VSW-BNC-MF-2G-MP
- RF Matching Pad
- BNC
- Male to Female
- Impedance – 50Ω
- Frequency (GHz) – DC-2
Click Here to get Data Sheet
For Orders & Info
Description
| SPECIFICATIONS | |
| Adapter Side 1 Series | BNC |
| Gender1 | Plug(Male) |
| Orientation | Straight |
| Impedance (Ohms) | 75 |
| Body Plating | Tri-Metal |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Adapter Side 2 Series | BNC |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Impedance (Ohms) | 50 |
| Dielectric Type | PTFE |
| Body Plating | Tri-Metal |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Input Power, CW | 1Watt |
| Max Frequency (GHz)Â Â Â Â Â | DC to 2GHz |
| VSWR(Max) | 1.5:1 |
| Min. Temp. (Celsius) | -40°C |
| Max. Temp. (Celsius) | +85°C |
