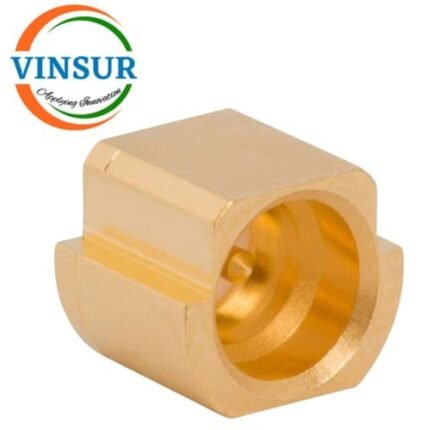

VSW-PSMP-FS-PEM — RF CONNECTORES – 50 OHMS – PSMP FEMALE STRAIGHT FOR PCB END LAUNCH
APPLICATIONS:Â Â
- Base Stations & Wireless Infrastructure
- Blind-Mate Applications
- High-Power RF Transmission
- Industrial/Commercial Systems
- Space-Constrained Designs
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | PCB- Edge Mount |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Mounting Type | Edge Mount |
| Mounting Features | – |
| Insulator Material | PTFE |
| VSWR | ≤1.25 |
| Max Frequency (GHz) | DC to 10 GHz |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | 165°C |
