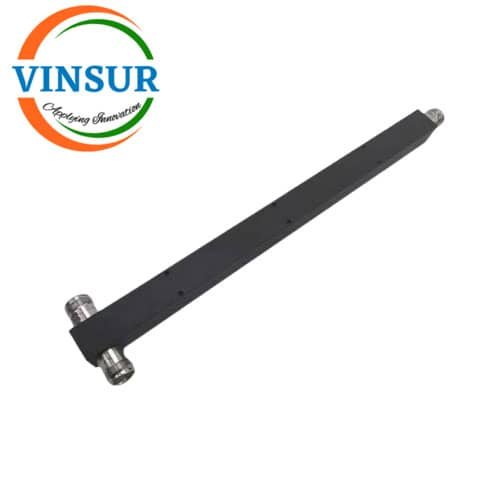

RF Low PIM Power Divider (2-Way 380-2700MHz 4.3-10 Female)
P/N : VSW-2PS-3827-160-41F
- RF Power Divider
- 2-Way
- 4.3-10 Female
- Impedance – 50Ω
- Frequency (MHz) – 380-2700
Click Here to get Data Sheet
For Orders & Info
Description
| SPECIFICATION | |
| Split Chanel | 2-way |
| Split Loss(dB) | 3.0 |
| Insertion Loss(dB) | ≤0.4 |
| PIM(dBc) | -160dBc@2x43dBm |
| Freq(MHz) | 380-2700MHz |
| VSWR | ≤1.25 |
| Power Rating(W) | 300W (average Per Port) |
| Impedance | 50 ohm |
| Connector | 4.3-10 Female |
| Color | Black |
| Relative Humidity | 5-95% |
| Operating Temperature(℃) | -30~+65 |
