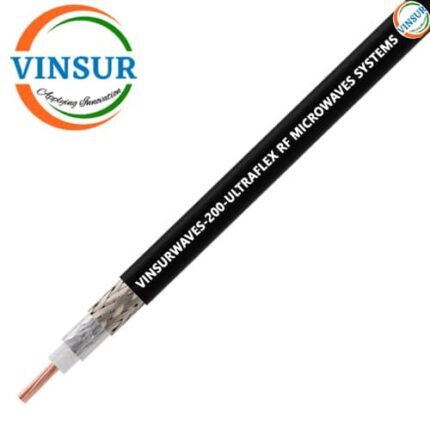

VINSURWAVES-®200-UF Ultra Flex Communications Coax
P/N : VINSURWAVES-200-UF
- VSW600 Low Loss Cable
- 50Ω
- Max Frequency (GHz) – DC to 5.8
Applications:
- Wireless & Cellular Systems: Connecting 4G, 5G, and LTE routers, or mobile signal boosters to indoor/outdoor antennas.
- Wi-Fi & WLAN Setups: Routing short antenna jumper or pigtail cables for wireless access points and WiMax installations.
- GPS & Navigation: Feeder runs for GPS receiver antennas where precise timing and minimal signal drop are critical.
Click Here to get Data Sheet
For Orders & Info
Description
| CONSTRUCTION SPECIFICATIONS | |||
| Description | Material | In. | (mm |
| Inner Conductor | Stranded BC | 0.044 | (1.12) |
| Dielectric | Foam Polyethylene | 0.116 | (2.95) |
| Outer Conductor | Aluminum Tape | 0.121 | (3.07) |
| Overall Braid | Tinned Copper | 0.144 | (3.66) |
| Jacket | Black Thermoplastic Elastomer | 0.195 | (4.95) |
| ENVIRONMENTAL SPECIFICATIONS | ||
| Performance property | OF | OC |
| Installation Temperature Range | -40/+185 | -40/+85 |
| Storage Temperature Range | -94/+185 | -70/+85 |
| Operating Temperature Range | -40/+185 | -40/+85 |
| ELECTRICAL SPECIFICATIONS | |||
| Performance property | Units | US | (metric) |
| Velocity of Propagation | % | 83 | |
| Dielectric Constant | NA | 1.45 | |
| Time Delay | nS/ft (nS/m) | 1.22 | (4.02) |
| Impedance | ohms | 50 | |
| Capacitance | pF/ft (pF/m) | 24.5 | (80.3) |
| Inductance | uH/ft (uH/m) | 0.061 | (0.20) |
| Shielding Effectiveness | dB | >90 | |
| DC RESISTANCE | |||
| Inner Conductor | ohms/1000ft (/km) | 7.5 | (24.6) |
| Outer Conductor | ohms/1000ft (/km) | 4.9 | (16.1) |
| Voltage Withstand | Volts DC | 1000 | |
| Jacket Spark | Volts RMS | 3000 | |
| Peak Power | kW | 2.5 | |
| MECHANICAL SPECIFICATIONS | |||
| Performance property | Units | US | (metric) |
| Bend Radius: installation | in. (mm) | 0.5 | (12.7) |
| Bend Radius: repeated | in. (mm) | 2 | (50.8) |
| Bending Moment | ft-lb (N-m) | 0.1 | (0.14) |
| Weight | lb/ft (kg/m) | 0.022 | (0.03) |
| Tensile Strength | lb (kg) | 40 | (18.2) |
| Flat Plate Crush | lb/in. (kg/mm) | 10 | (0.18) |
