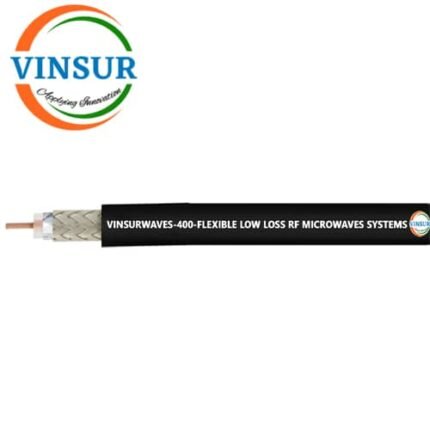

VINSURWAVES-®400 Flexible Low Loss Communications Coax
P/N : VINSURWAVES-400
- VSW400 Low Loss Cable
- 50Ω
- Max Frequency (GHz) – DC to 8
Applications:
- WLAN, GPS
- Amateur radio antenna feeds,
- Cellular base stations
Click Here to get Data Sheet
For Orders & Info
Description
| CONSTRUCTION SPECIFICATIONS | |||
| Description | Material | In. | (mm |
| Inner Conductor | Solid BCCAI | 0.108 | (2.74) |
| Dielectric | Foam PE | 0.285 | (7.24) |
| Outer Conductor | Aluminum Tape | 0.291 | (7.39) |
| Overall Braid | Tinned Copper | 0.320 | (8.13) |
| Jacket | PVC | 0.405 | (10.29) |
| ENVIRONMENTAL SPECIFICATIONS | ||
| Performance property | OF | OC |
| Installation Temperature Range | -40/+185 | -40/+85 |
| Storage Temperature Range | -94/+185 | -70/+85 |
| Operating Temperature Range | -40/+185 | -40/+85 |
| ELECTRICAL SPECIFICATIONS | |||
| Performance property | Units | US | (metric) |
| Velocity of Propagation | % | 84 | |
| Dielectric Constant | NA | 1.38 | |
| Time Delay | nS/ft (nS/m) | 1.20 | (3.92) |
| Impedance | ohms | 50 | |
| Capacitance | pF/ft (pF/m) | 23.9 | (78.4) |
| Inductance | uH/ft (uH/m) | 0.060 | (0.20) |
| Shielding Effectiveness | dB | >90 | |
| DC Resistance | |||
| Inner Conductor | ohms/1000ft (/km) | 1.39 | (4.6) |
| Outer Conductor | ohms/1000ft (/km) | 1.65 | (5.4) |
| Voltage Withstand | Volts DC | 2500 | |
| Jacket Spark | Volts RMS | 8000 | |
| Peak Power | kW | 16 | |
| MECHANICAL SPECIFICATIONS | |||
| Performance property | Units | US | (metric) |
| Bend Radius: installation | in. (mm) | 1.00 | (25.4) |
| Bend Radius: repeated | in. (mm) | 4.0 | (101.6) |
| Bending Moment | ft-lb (N-m) | 0.5 | (0.68) |
| Weight | lb/ft (kg/m) | 0.068 | (0.10) |
| Tensile Strength | lb (kg) | 160 | (72.6) |
| Flat Plate Crush | lb/in. (kg/mm) | 40 | (0.71) |
