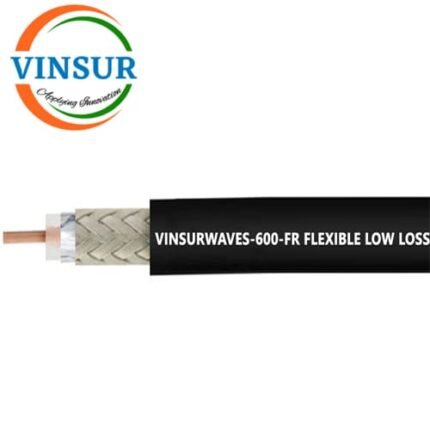

VINSURWAVES -600FR Flexible Low Loss RF Microwaves system coax
P/N : VINSURWAVES-®600FR
- VSW600-Fire Retardant Cable
- 50Ω
- Max Frequency (GHz) – DC to 5.8
Applications:
- In-Building Riser Run
- In-Box Interconnects
- Aerospace & Defense
- Test & Measurement
Click Here to get Data Sheet
For Orders & Info
Description
| CONSTRUCTION SPECIFICATIONS | |||
| Description | Material | In. | (mm |
| Inner Conductor | Solid BCCAl | 0.176 | (4.47) |
| Dielectric | Foam PE | 0.455 | (11.56) |
| Outer Conductor | Aluminum Tape | 0.461 | (11.71) |
| Overall Braid | Tinned Copper | 0.490 | (12.45) |
| Jacket | PE-FR | 0.590 | (14.99) |
| ENVIRONMENTAL SPECIFICATIONS | ||
| Performance property | OF | OC |
| Installation Temperature Range | -40/+185 | -40/+85 |
| Storage Temperature Range | -94/+185 | -70/+85 |
| Operating Temperature Range | -40/+185 | -40/+85 |
| ELECTRICAL SPECIFICATIONS | |||
| Performance property | Units | US | (metric) |
| Velocity of Propagation | % | 87 | |
| Dielectric Constant | NA | 1.32 | |
| Time Delay | nS/ft (nS/m) | 1.17 | (3.83) |
| Impedance | ohms | 50 | |
| Capacitance | pF/ft (pF/m) | 23.4 | (76.6) |
| Inductance | uH/ft (uH/m) | 0.058 | (0.19) |
| Shielding Effectiveness | dB | >90 | |
