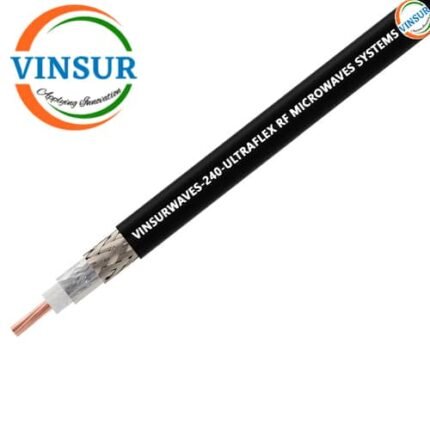

VINSURWAVES-®240-UF Ultra Flex Communications Coax
P/N : VINSURWAVES-240-UF
- VSW240 Low Loss Cable
- 50Ω
- Max Frequency (GHz) – DC to 5.8
Applications:
- Mobile Antennas: Vehicle-mounted communication systems and temporary or tactical transit setups.
- Wireless Systems: Jumper cables for Wireless Local Loop (WLL), WLAN, WiMax, and Wireless Internet Service Provider (WISP) equipment.
- GPS and Radio: GPS receiver installations, Land Mobile Radio (LMR), and amateur radio shack jumpers.
Click Here to get Data Sheet
For Orders & Info
Description
| CONSTRUCTION SPECIFICATIONS | |||
| Description | Material | In. | (mm |
| Inner Conductor | Stranded BC | 0.056 | (1.42) |
| Dielectric | Foam Polyethylene | 0.150 | (3.81) |
| Outer Conductor | Aluminum Tape | 0.155 | (3.94) |
| Overall Braid | Tinned Copper | 0.178 | (4.52) |
| Jacket | (See Table) | 0.240 | (6.10) |
| ENVIRONMENTAL SPECIFICATIONS | ||
| Performance property | OF | OC |
| Installation Temperature Range | -40/+185 | -40/+85 |
| Storage Temperature Range | -94/+185 | -70/+85 |
| Operating Temperature Range | -40/+185 | -40/+85 |
| ELECTRICAL SPECIFICATIONS | |||
| Performance property | Units | US | (metric) |
| Velocity of Propagation | % | 80 | |
| Dielectric Constant | NA | 1.42 | |
| Time Delay | nS/ft (nS/m) | 1.21 | (3.97) |
| Impedance | ohms | 50 | |
| Capacitance | pF/ft (pF/m) | 24.2 | (79.4) |
| Inductance | uH/ft (uH/m) | 0.060 | (0.20) |
| Shielding Effectiveness | dB | >90 | |
| DC Resistance | |||
| Inner Conductor | ohms/1000ft (/km) | 4.28 | (14.1) |
| Outer Conductor | ohms/1000ft (/km) | 3.89 | (12.8) |
| Voltage Withstand | Volts DC | 1500 | |
| Jacket Spark | Volts RMS | 5000 | |
| Peak Power | kW | 5.6 | |
| MECHANICAL SPECIFICATIONS | |||
| Performance property | Units | US | (metric) |
| Bend Radius: installation | in. (mm) | 0.75 | (19.1) |
| Bend Radius: repeated | in. (mm) | 2.5 | (63.5) |
| Bending Moment | ft-lb (N-m) | 0.125 | (0.17) |
| Weight | lb/ft (kg/m) | 0.034 | (0.05) |
| Tensile Strength | lb (kg) | 80 | (36.3) |
| Flat Plate Crush | lb/in. (kg/mm) | 13 | (0.23) |
